Carte Contrôleur PIXELCADE

Cette carte sert d’interface entre le Raspberry ou PC et les dalles DMD.
Nécessite l’utilisation de la distribution PIXELCADE

ATTENTION:

Important: les cartes Pixelcade V2 fonctionnent sur une puissance 12V, contrairement aux cartes Pixelcade V1 d’origine, qui utilisent 5V.

Ne réutilisez pas le câble d’alimentation de votre carte V1, car cela endommagera vos panneaux LED. Utilisez le nouveau câble d’alimentation fourni avec votre carte V2.

UNIQUEMENT 12v

Use Recommended power supply 12v 5A+ only.

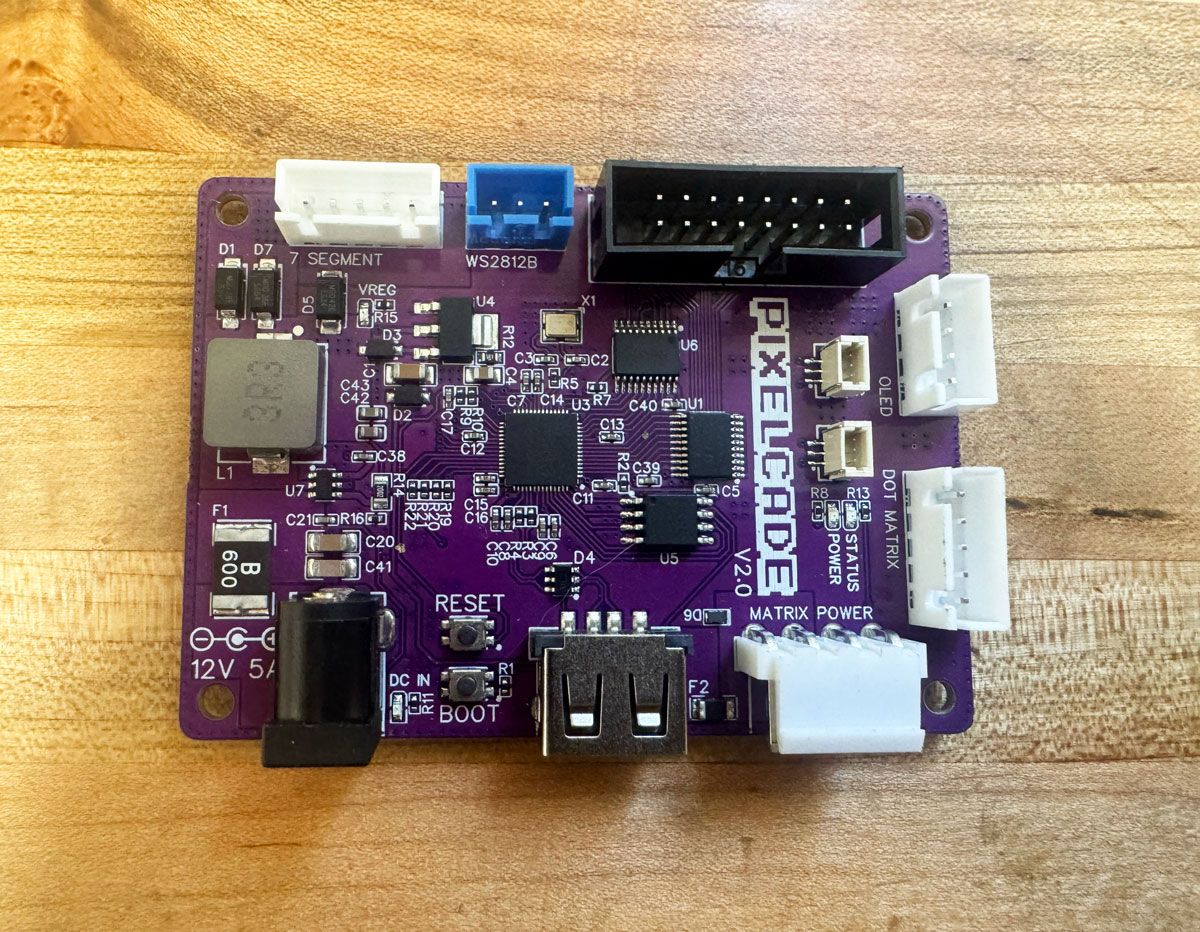

The Pixelcade V2 board includes built-in support for WS2812B LED strips and an upgraded 16-bit color depth, compared to the 9-bit color depth of Pixelcade V1 boards.

Includes:

• Pixelcade V2 Board
• Pixelcade LED Matrix Power Cable
• Pixelcade Pulse Base Cables

Important: Pixelcade V2 boards operate on 12V power, unlike the original Pixelcade V1 boards, which use 5V. Do not reuse the power cable from your V1 board, as doing so will damage your LED panels. Use the new power cable provided with your V2 board.

The Pixelcade V2 board has the same mounting hole locations as Pixelcade V1 boards. If supplying your own power supply, use a 12V, 5A supply.

The following PC Arcade Front Ends have been tested:

• CoinOPS Retro Arcade (choose CoinOps from Arcade front end setup wizard)
• CoinOPS Next 2, CoinOPS 2 Gems, CoinOPS NEXT, CoinOPS Arcadia (choose CoinOps Legacy from Arcade front end setup wizard)
• Core
• HyperSpin
• Big Box & Launch Box
• Game Ex and Game Ex Arcade Edition
• MaLa
• Attract Mode

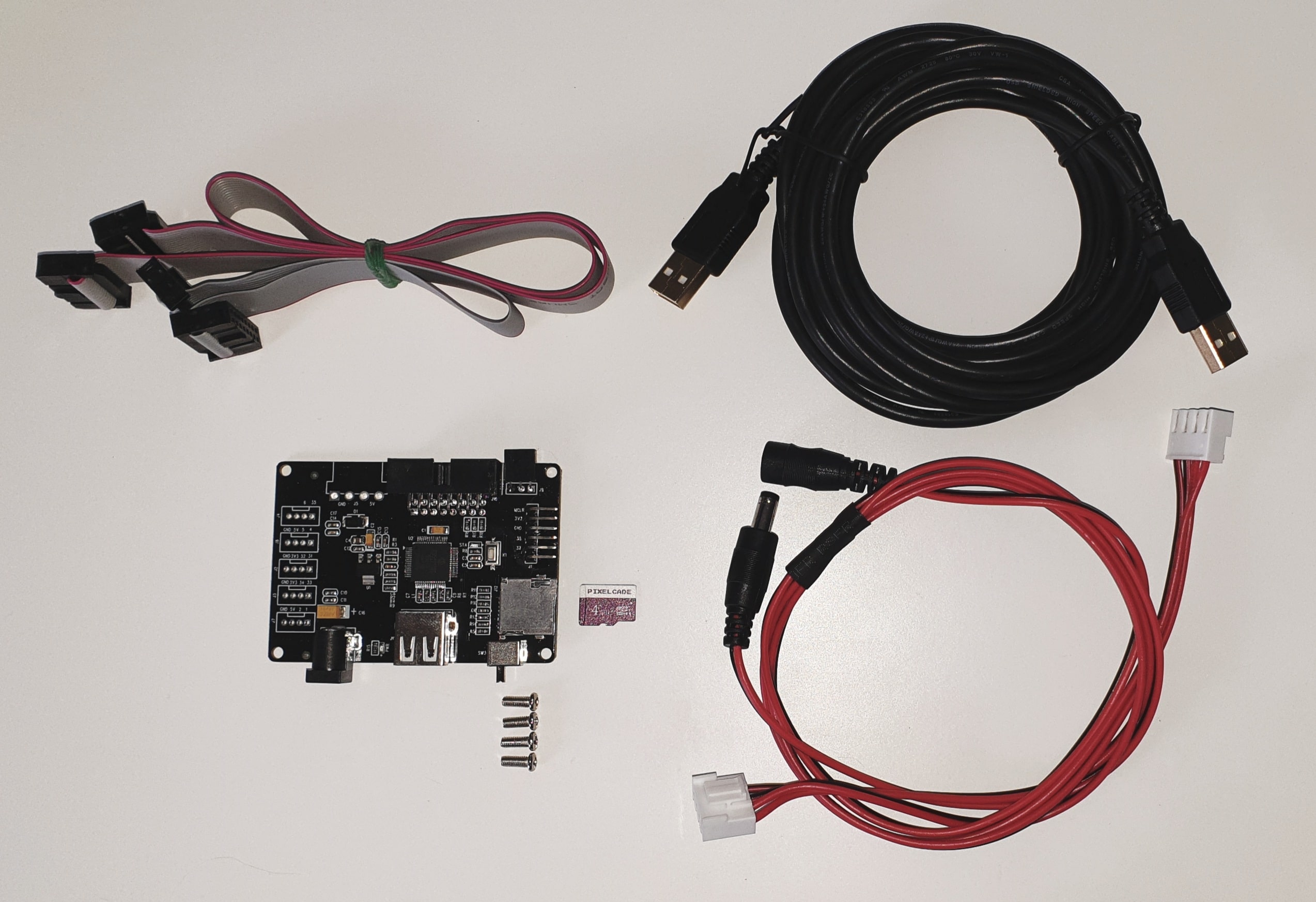

PIXEL Board, USB A-A Cable, Ribbon and Power Cables

This is the kit version of Pixelcade™ and DOES NOT include a full mount

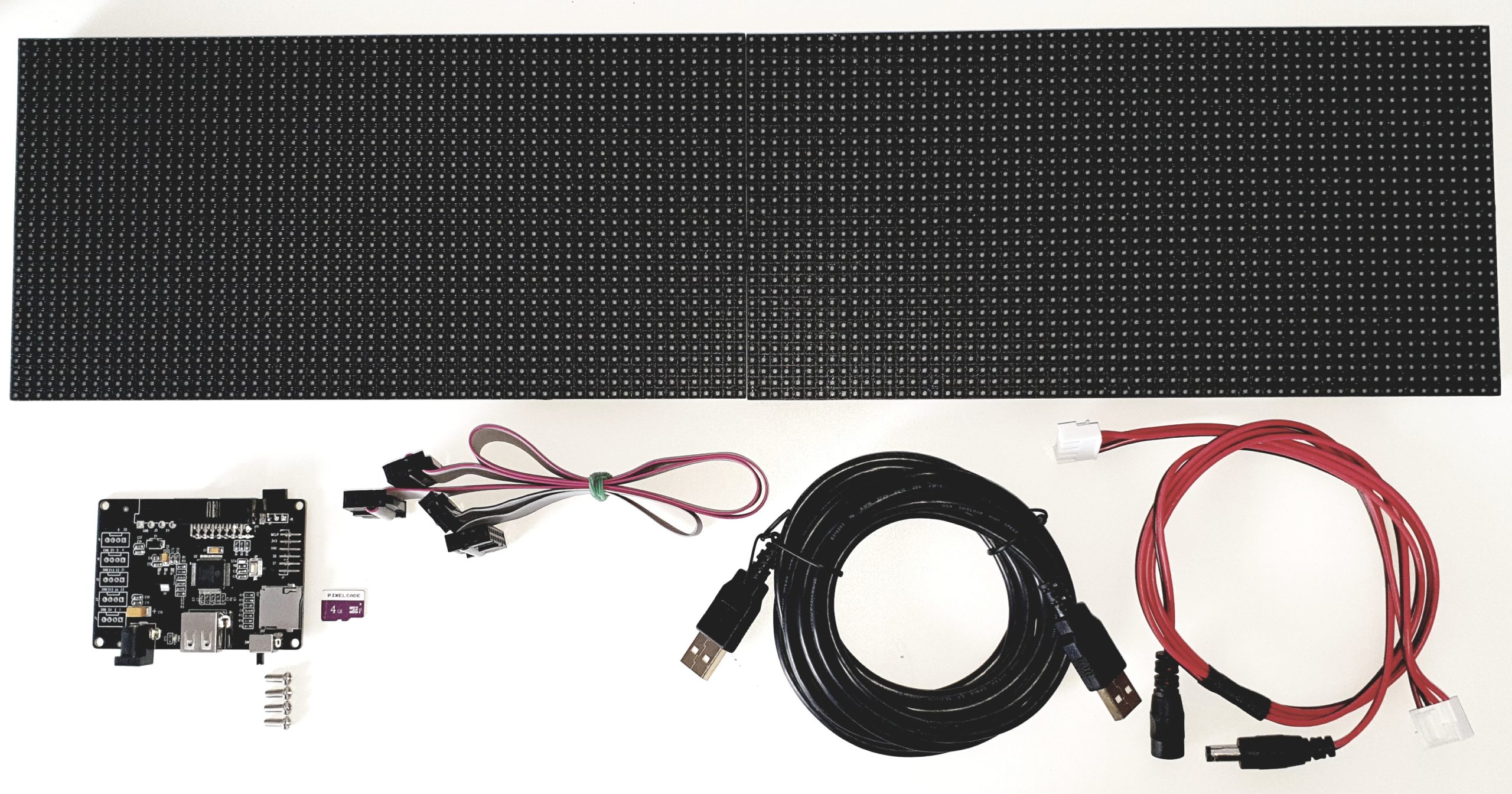

Two 64×32 P4 Panels (20” x 5” x 0.6”) Option
